Korean Power Grid (KPG) Test System
If you use the KPG 193 test system in your work, we kindly request that you cite the following paper:
G. Song and J. Kim, “KPG 193: A Synthetic Korean Power Grid Test System for Decarbonization Studies,” 2024, arXiv:2411.14756. [link]
KPG 193 Test System

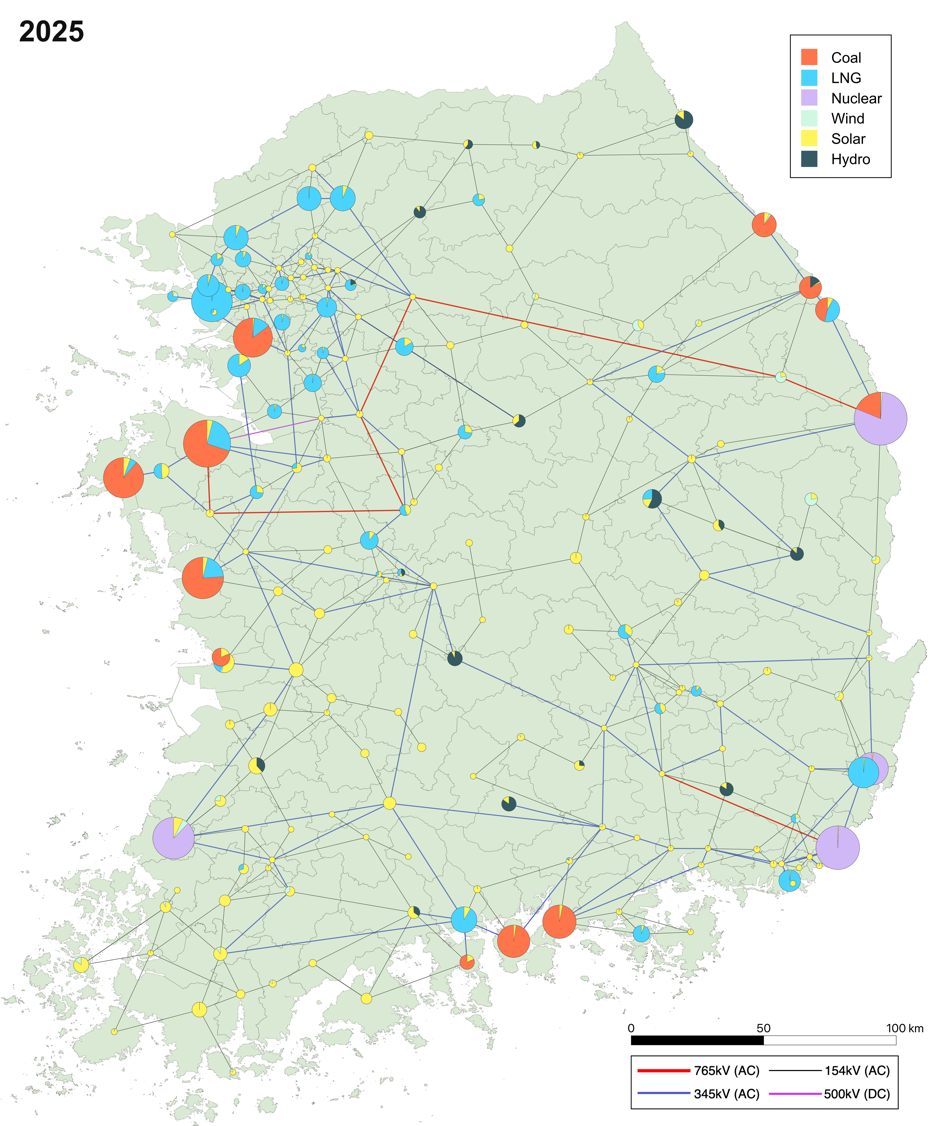

KPG 193 is a synthetic Korean power grid test system developed using open data sources. It aims to provide a foundational framework for modeling and analyzing the Korean power grid.
The system includes:
- 193 buses with spatial information
- 122 conventional generators
- 359 transmission lines
- Capacity of renewable generators
- 8760-hour profiles for electrical demand, weather data, and renewable generators
Datasets and documentation
released 2026-08-24
- Demand and renewable profiles: switched to a system-demand-based methodology.
- Generator parameters: refined.
- Metadata: expanded to include pumped storage, with a hierarchical structure.
Contact
If you have any questions or suggestions, Email us at : egolab.kpg@gmail.com
archived 2025-12-16
- Generator locations corrected.
- KPG 193 v1.5
updated 2025-09-20
- Topology: Updated to better reflect the actual power grid. [reference]
- Bus IDs: Revised and standardized.
- License: Added LICENSE file (ODbL 1.0) for project distribution.
- KPG 193 v1.4 (zip, 90.8MB)
updated 2025-07-18
- Renewables profile: Fixed.
- KPG 193 v1.3 (zip, 104.4MB)
updated 2025-02-04
- Generator Cost Function: Updated.
- Generator Capacity: Updated.
- Unit Commitment Solution for ACPF, ACOPF : Added.
- ACOPF Convergence: Fixed.
- KPG 193 v1.2 (zip, 104.4MB)
updated 2024-12-19
- Slack Bus Update: Changed from bus #1 to bus #52.
- KPG 193 v1.1 (zip, 97.2MB)
released 2024-11-22
